Cattle Auto Drafter
Using the BM Auto Drafter coupled with the BM intelligent weighing and grouping system to scan the cattle tags allows you to draft out animals based on divides cattle into three groups based on cattle weight data and electronic ear tag information.
We're here to help: Easy ways to get the answers you need!

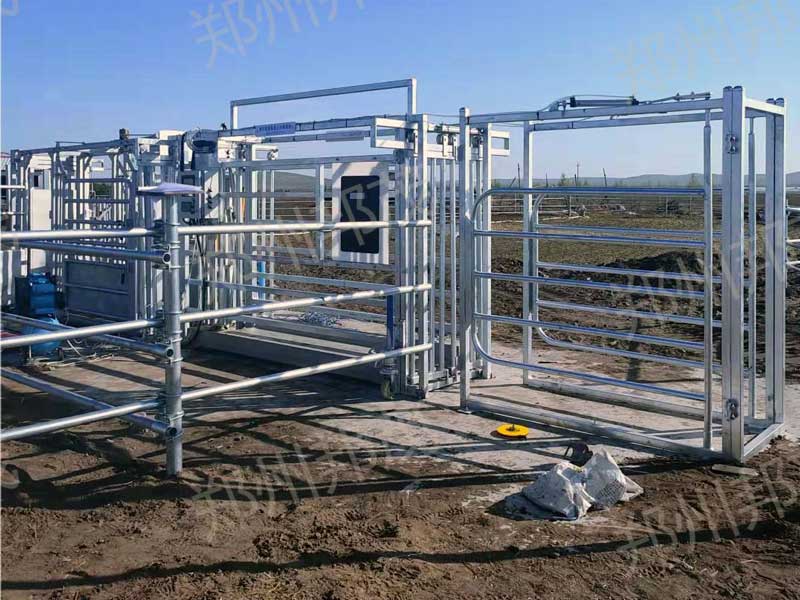

Auto Draft Management Crate for beef cattle
• Data processing: industrial touch screen computer + weighing management software
• Fast, accurate recording of weight and other data
• Hands free weighing and drafting,
• Operation mode: fully automatic operation
• Control method: automatic control instrument
• Electronic ear tag recognition rate: 99.99%
• Grouping criteria: by weight, age in months
• Grouping level: three groups
BM Auto Drafter combines an Android app, Reader, antenna, weigh head and switcher.
Using the BM Auto Drafter coupled with the BM intelligent weighing and grouping system to scan the cattle tags allows you to draft out animals based on divides cattle into three groups based on cattle weight data and electronic ear tag information.
And because all gates, the in gates and the multiple out gates, are controlled pneumatically, so fast and convenient, less stimulation to cattle , accurate grouping, and reduced labor intensity of ranch personnel.
BM Cattle Auto Drafter is a dynamic, efficient, and accurate weighing system that provides weighing and data acquisition solutions for large farms.
| Capacity | 1500kg |
| Accuracy | 500g |
| Load Cell | Stainless Steel, Corrosion Resistant |
| Efficiency | 600 heads |
| Weight | 500KG |
| Appearance size | L5000*B900*H2000mm |
| Footprint length | 5000mm width 1000mm |
| Packing size | length 3000mm width 1000mm height 2000mm |
| Power supply voltage | 220V |
| Push mode | cylinder action |
| Power | Pneumatic (powered by air compressor) |
| Electronic ear tag identification method | active identification |
| Electronic ear tag reader | LF or UHF reader |
| Frame material | carbon steel sprayed or hot-dip galvanized |
| Grouping criteria | by weight, age in months, male and female |
